ELP 48mp Autofocus USB Camera with Light Day Night
$126.99
Price: $126.99
(as of Mar 21, 2025 15:43:10 UTC – Details)
Product Description
ELP 48mp Autofocus USB PC Camera 8000*6000P 8K Lightburn Camera for laser engraver mini UVC USB2.0 USB security camera for Computer
ELP-USB48MP03-AF70 (HFOV about 70degree, DHOV about 82degree)
High Resolution 48MP Autofocus Day Night Vision USB Camera:This 48MP High Resolution Autofocus USB Camera is based on Big 1/2” 48MP S5KGM1 image sensor, Autofocus, Night Vision, USB 2.0 UVC compliant. No extra drivers needed, the native UVC drivers of Windows, Linux and Mac shall be compatible with this camera. Fast Auto control the focusing process to capture the moving object, works like the human eye, and shots the imaging you want. Ultra 8000*6000 resolution meets application where High resolution images and video with autofocus capabilities are required.
Mini size light weight usb camera for pc,computer,laptop,raspberry pi,android development board,Jetson Nano,etc
Parameters:
Sensor: 1/2 inch S5KGM1Max. Resolution: 8000 (H) *6000 (V)Compression Format: MJPEG / YUY2 (YUYV)Resolution & Frame Rate:8000×6000@5fps MJPEG/4000×3000@15fps MJPEG/3840×2160@30fps MJPEG/1920×1080@30fps MJPEG/1280×720@30fps MJPEGAuto Focus Speed: Fast About 200msCentral Definition: 1000LW/PH (Center)Mini Illumination: 0.3luxShutter Type: Electronic rolling shutter / Frame exposureConnecting Port Type: USB2.0 High SpeedAdjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, ExposurePower Supply: USB BUS POWER 4P-2.0mm SocketOperating Voltage: DC5V Working Current: 550mA- 610mAStorage Temperature: -20°C to 80°C Working Temperature: 0°C to 70°CUSB Cable Standard 1m/3.3ft
Autofocus with 70degree mini size no distortion lens,mini size for PC camera interface,plug and play,free driver,UVC compliant.

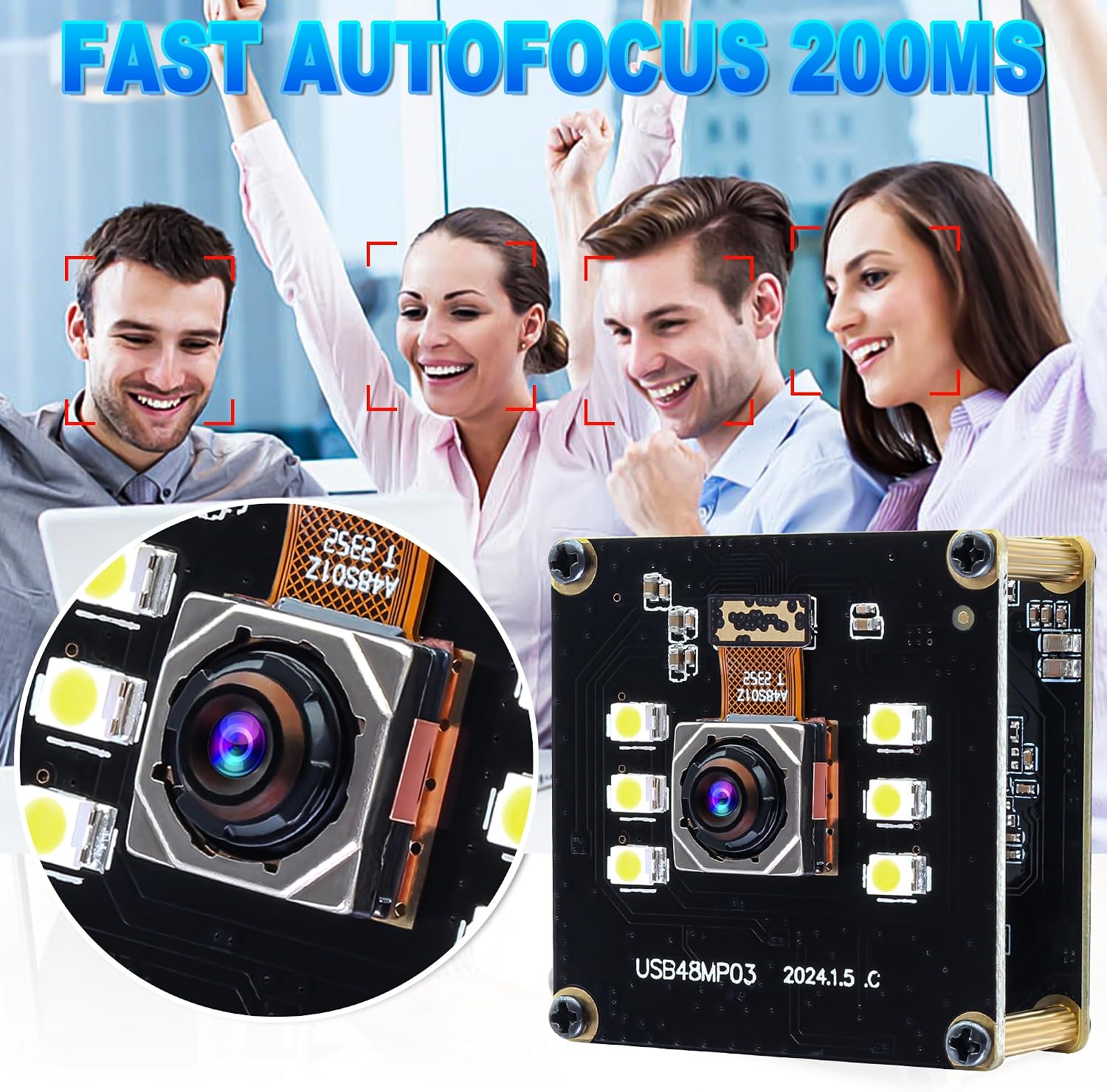

200mS Fast Autofocus:
200ms high speed can shoot objects in close and Far distance on the same camera, automatically controlled without lens adjustment tool, clearer and easier than the fixed focus camera.
Super Image reality, real color reproduction, without interpolation, fast autofocus 48 megapixel usb camera, 200ms autofocus speed.
48MP Ultra Clear
Max Resolution:
8000(H) X 6000(V) 48 Megapixel
super Image reality, real color reproduction, show your best in every video call.
Coloful Night Vision：
with 6PCS Whites LEDs on board for low weak light condition,can shoot sharp clear image in day and night.
Autofocus
shoot objects at millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera.
Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi…OTG Support, can be used on Android smartphone, recommended app “USB Camera”.
Plug and Play/Free Driver
UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Application
this ultra clear 48mp usb camera is well used for medical device, 3D scanner, high resolution document scan, scientific research&developmrnt, education and training, etc.
Mini Size/Light Weight
this mini 38mmx38mm camera board can be installed in most hidden and narrow position, equipped with 1meter USB cable for wide range of usage.
Small outline and thin profile for embedded machines, mini size, light weight camera board can be installed in most hidden and narrow position.
Application:
Well used for industrial camera, video conferencing, live streaming, security system, medical device, industrial inspection, scientific research and development , education and training, high resolution document scan, high-speed photographic apparatus, photo scanner… and so on.
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.2 out of 5 stars 11
4.0 out of 5 stars 2
4.1 out of 5 stars 9
4.1 out of 5 stars 11
—
4.4 out of 5 stars 61
Price
$126.99$126.99 $135.99$135.99 $127.99$127.99 $148.99$148.99 $66.49$66.49 $132.99$132.99
Max Resolution
48Megapixel 8000X6000 48Megapixel 8000X6000 48Megapixel 8000X6000 48Megapixel 8000X6000 48Megapixel 8000X6000 4K 3840X2160
Image Sensor
1/2″ S5KGM1ST03-FG9 1/2″ S5KGM1 1/2″ IMX586 1/2″ IMX586 1/2″ IMX586 1/2.8″ IMX415
FOV
70°(H) 70°(H) 100°(H) 3X manual zoom lens, view angle adjustable >180°(H) 19-63°(H)
Mini Illumination
0.3LUX 0.3LUX 0.3LUX 0.3LUX 0.3LUX 0.2LUX
Compression Format
MJPEG/YUY2 MJPEG/YUY2 MJPEG/YUY2 MJPEG/YUY2 MJPEG/YUY2 H.265/H.264/MJPEG/YUY2
Lens
70degree autofocus mini size no distortion lens 70degree autofocus mini size no distortion lens 100degree no distortion lens 3.6-10mm variable focus lens 1.56mm wide angle fisheys lens HD CS 5-50mm lens(CS 2.8-12mm lens optional)
USB Cable
1M/3.3ft USB Cable 1M/3.3ft USB Cable 1M/3.3ft USB Cable 3M/9.9ft USB Cable 3M/9.9ft USB Cable 1PCS 1.2m cable with Type-C port, 1PCS 1.5m cable with HDMI port
Connecting Port Type
USB 2.0 USB 2.0 USB 2.0 USB 2.0 USB 2.0 USB 2.0 Interface &HDMI V 1.4 Interface
Compatible Device
Computer, Laptop, pc, android device, tablets, etc Computer, Laptop, pc, android device, tablets, etc Computer, Laptop, pc, android device, tablets, etc Computer, Laptop, pc, android device, tablets, etc Computer, Laptop, pc, android device, tablets, etc Computer, Laptop, pc, android device, tablets, etc
Support OS
Windows, Linux with UVC Mac-OS X 10.4.8 or later ANDROID UBUNTU CHROME OS Raspberry Pi Windows, Linux with UVC Mac-OS X 10.4.8 or later ANDROID UBUNTU CHROME OS Raspberry Pi Windows, Linux with UVC Mac-OS X 10.4.8 or later ANDROID UBUNTU CHROME OS Raspberry Pi Windows, Linux with UVC Mac-OS X 10.4.8 or later ANDROID UBUNTU CHROME OS Raspberry Pi Windows, Linux with UVC Mac-OS X 10.4.8 or later ANDROID UBUNTU CHROME OS Raspberry Pi Windows, Linux with UVC Mac-OS X 10.4.8 or later ANDROID UBUNTU CHROME OS Raspberry Pi
High Quality Imaging: UHD 8000×6000 resolution, adpots big 1/2″ S5KGM1 48mp sensor for sharp image.
Fast autofocus lens: focus speed about 200ms, perfect for capturing fast-moving objects.
Built with 6pcs white LED lights: colorful night vision image, suitable for day night vision usage.
Wide angle low distortion lens: DFOV About 82degree, HFOV About 70degree, Mount M8.15 *P0.35.
High Color fidelity: the camera works like human eye, get sharp image and accurate color reproduction, with super image reality.
Super small and Mini Size for your lightburn laser engraver. Compact lightburn laser camera for all kinds of machine vision.
Plug&Play, UVC compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the included USB cable without extra drivers to be installed.
Compatible with muti software & operating system: Support Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi, Jetson Nano…
Comptible with Amcap, iSpy, USB Camera, Fswebcam, OpenCV, VLC, Photo Booth, Facetime, Quick time , Webcam Viewer,TouchDesigner, ZoneMinder, Motion Eye OS, Yawcam….
Applications: mini size, light weight, well embedded in kinds of machines, highly recommended for medical imaging, industrial inspection, Research&development, medical machine (image analysis), high resolution photographic apparatus, photo scanner……
Matt F. –
great!
The ELP 48MP Autofocus USB Camera is an impressive device with crystal-clear image quality and reliable day-night vision. Its fast autofocus and built-in lighting make it ideal for laser engraving projects and video calls, even in low-light settings. Compact and versatile, it works seamlessly with my laptop and Raspberry Pi, making it a fantastic all-in-one webcam and security solution.
E_F –
Works for specific purpose
The camera is average for 48MP, the images are fine foir stationary viewing. Recommended for u
MBK –
HOT; Leds create glare, pricey
I really was expecting so much more out of this little camera, but for the price I cannot recommend it.First off, this thing gets HOT when running. The heatsink on the back is absolutely required because it gets extremely hot.Secondly, if you are using this through any kind of glass or enclosure the LEDs are so bright they end up creating glare and blinding the camera. It then gets stuck in a constant loop of auto focus.Thirdly, for over $100, you can do A LOT better for a camera. Unless you have some hyper specific use case, I don’t see this being worth it.
DR –
Very nice little camera
I use this little camera on a CNC machine to view/record. It has a superb picture and Windows recognized it without any issues at all. Very happy with this.
Keith –
So far, so decent
Purchased this camera for a couple different goals. The first was to record/monitor 3d prints, and for that purpose it has worked fine. I don’t notice any huge quality gains over the commercial webcam I used previously, but it’s great to have something a bit more permanent and purpose built.The second purpose I bought this for is for use with a diode laser engraver machine, as a plug-in/accessory for LightBurn laser software. Because this uses the camera for actual positioning of cuts and materials, and not just for passive monitoring, the accuracy, installation, and calibration requirements are much higher. So far, I’m still working through these. I have not quite got it dialed in and working correctly, but I won’t rule out user or installation error just yet. I promise to provide an update when I have conclusive results on this end though.
S. Wellborn –
Great camera but needs a little software work
The image quality is very good, but I cannot seem to be able to control the LEDs. The LEDs stay on all the time. But it works out of the box with the exception of the LEDs.
Rin’s Reviews –
Overprice but does the job
A 48MP camera that’s over $100 that does the same thing as a $30 camera can do except this one is way higher resolution compare with 1080pI use it to monitor my 3d printer but in the end I switch back because I prefer the common cheap raspberry pi camera because I can print a lot of compatible parts on the mount.The camera itself is great but it will be hard to find the printable mount unless you design it yourself.I do enjoy the USB set up but it’s like any other camera out there but with heavy price.
Grambo –
Great little USB camera
This little camera has a lot to offer! It is a 48 megapixel camera that connects to your computer with USB, which also powers the camera. Its USB connection is USB 2.0. It has both day and night vision. Use it as a webcam with great resolution, use it as a security camera, or use it on a Raspberry Pi microcomputer. This camera does high quality imaging with UHD 8000 by 6000 resolution using a 48mp sensor that delivers very sharp images. It has an autofocus lens! It has onboard 6 bright white LEDs for a color night vision image as well as for day images. It uses a wide angle low distortion lens. It delivers high fidelity color images for such a small format device. Best of all, it is plug and play! You can connect it to a PC, laptop, Android device or a Raspberry Pi without having to install drivers. That’s quite a trick!
