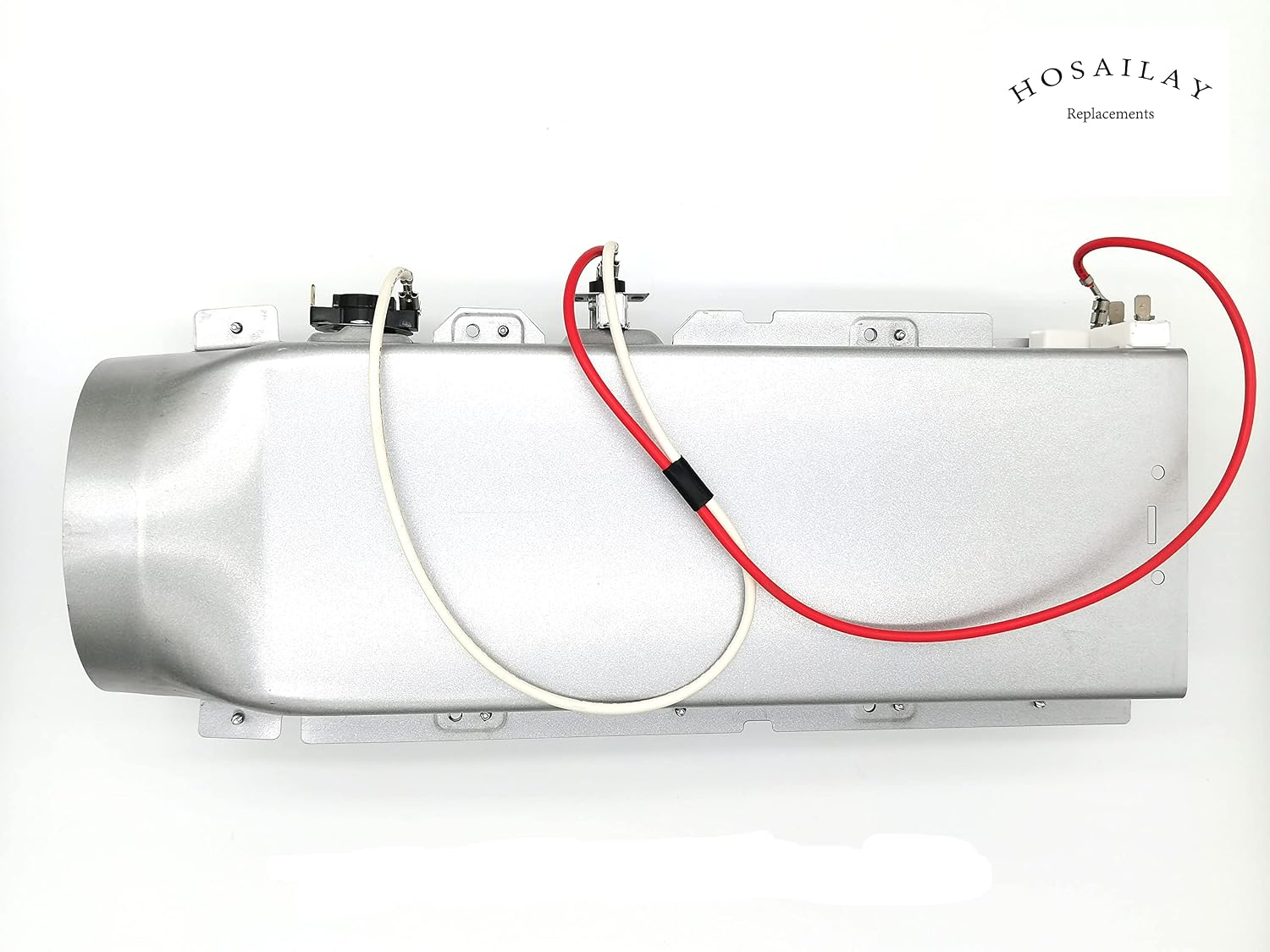

5301EL1001H Dryer Heating Element Assembly Replaci
$48.99
Price: $48.99
(as of Feb 28, 2025 13:14:47 UTC – Details)
Product Description
Dryer failure diagnose procedures
Please inspect your dryer according to the above procedures and find out where excatly the problem is to save your time and money.
How to distinguish good or bad dyer heating element assembly?
Key point 1
Precise assembly process.
Precise assembly process prevents mass leakage of heat to improve the efficiency of dryer.
Key point 2
High Precision Thermostat 6931EL3001F .
Genuine OEM made thermostatModel: T-O-D 60T11, Z2042, L257-87.8℉.Three terminalsLife span: More than 200,000 cycles. Circuit on and heater when it drop by around 170℉， and circuit off when it reaches around 257 ℉.
Key point 3
Thermal cut-off 6931EL3003D
Genuine OEM made thermal fuse.Model: Wako Clinac. CS-7. From 275 to 293 ℉. High precision and reliable thermal fuse ensures dryer’s and your house’s safety.Please be ware that the thermal fuse is for one time. Once it’s blown, it can not be recovered and must be replaced.
Part codes difference
Before you procced this product to cart, we strongly advice you to carry out the dryer failure diagnose procedures below to find out where the problems are on your dryers. If the heating coil is blown, replace the whole dryer heating element assembly. But if the thermostat or thermal fuse are blown, just replace them for saving cost.
One year product warranty. Within one year, any defects on thermostat, hi-limit thermal fuse or heating coil, you are welcome to return and replace it for free.
This replacing part assembly was made by the original authorized manufacturer, including heating element, cases, genuine OEM 6931EL3003D dryer thermal fuse, genuine OEM 6931EL3001F dryer thermostat, T-E 63300-1Faston tab wiith nickel-chrome surface finishing and UL approval standard cable wire assembly.
Replacing part codes of 5301EL1001A, 5301EL1001E, 5301EL1001G, 5301EL1001H, 5301EL1001J, 5301EL1001R, 5301EL1001S, 5301EL1001U and 5301EL1001W.
Compatible with the following models of LG’s laundry washer dryer DLE3777W, DLE5977B, DLE5977S, DLE5977M, DLE5977W, DLE6942W, DLE8377NM, DLE8377WM, DLE9577SM, DLE9577WM, DLE2532W, DLE5001W, DLE5955G, DLEX0001TM, DLEX5101W, DLEX5170V, DLEX5170W, DLEX5680V, DLEX5680W, DLEX5780VE, DLEX5780WE.
Compatible with the following models of Ken-more’s laundry washer dryer 79661412310, 79661412410, 79661512210, 79661513310, 79661523210, 79661622310 and 79661623310.
Please install this heating elment according to our user guide or hire experienced technician for the installations.
Please be aware that the thermal fuse is for one time. Once it’s blown, it can not be recovered and must be replaced.
J. Gonzales –
Works as it should!!! Great replacement!
After 13 years my LG washer broke. Replaced the drain pump then now my dryer broke and was not heating. My clothes dryer is a LG DLEX8000V and this replacement works! It was an easy install and I hope it lasts like the original part. But for less than the OEM part, I can’t complain. Make sure to clean the bottom part of your dryer as mine had lints all over and on top of the old heating element assembly. Also check all the mechanisms that makes the dryer run to make sure you won’t be openning the dryer again soon. I ran it for less than a minute after I put everything back together and used my thermal gun to see and it did heat up quickly to 148 degrees. There’s a lot of youtube videos that you can follow online just in case you’re not too confident to tackle the job.
Bike Party –
Perfect fit for my Kenmore Dryer
Made changing out all three heating elements fast and easy. Unit has been installed for over two months with perfect function.
MotherHen –
Perfect fit
The package was very nicely packed. Liked that it was a box inside a bigger box so the Part didn’t get damaged. Part seems to be very well made.Installation was easy. Turned the dryer on and bam..HEAT! This part fits perfectly.
mary campbell –
Heating element
It s works and my dryer is up and running again thank you
Chavez –
Don’t waste your time
After taking the dryer apart and cleaning out the dust bunnies the element was relatively easy to replace but only lasted for 2 days. I guess you get what you pay for. My recommendation is to purchase the OEM part or replace the dryer which I ended up doing.
Alyssa Wheeler –
So happy it worked
I was so scared I would have to buy a new dryer. Then scared again when I realized how much I would have to take apart my dryer to install the new element. But it was easier than I thought and my dryer works like new.
davis –
Works Great Just what I needed.
The heater assembly for my samsung dryer came packaged securely without damage. The assembly was pre-wired and ready for me to install. Install took me about 30 minutes to install it and put the dryer back together. The first time I tried to run the dryer the breaker tripped. I thought the new heater was bad. So, I took the dryer apart and realized that I had forgotten to put the blue and yellow wires back on the heating element. When installing the heater I had pulled the yellow and blue wires to the side and tucked them out of the way so they wouldn’t get in the way when I was trying to align the heating element housing. Consequently, I forgot to pull them out and hook them up to the element. So I then put the yellow and blue wires back on the element and put the dryer back together and tried it again and it worked fine. Guess I was in to much of a hurry and not paying close enough attention!
Dan Iannarino –
Exact Replacement Part
This was exactly like the outgoing part for my dryer! That made the swap very easy!
Tall guy –
I could not find the correct one for mine on Amazon, so I took the gamble and got this one with a couple of changes I made it work and it works fine!I used the original harness from the Samsung. The only thing I had to do was switch the wires on the two sensors closest to the back of the machine and extend the wires with the harness that was included. I had to take some tinsnips and cut the deflector shield off the original installed it with self tapping screws, and bend the flaps on the intake of my dryer.Probably not recommended but it’s not stupid if it works right!
Dkoenen –
Ordered to fix my dryer. Watched the YouTube channel on the how to. Was easy to install and it works great. Saved us a lot of money by doing it ourselves.
Paul S. –
Appears to be a quality product that fits like the original. Brought our LG dryer back to life!! Easy to install (watch a you-tube video). Great price in comparison to an OEM from LG.Can’t yet comment on durability, as I just installed today, although I don’t see any reason that it won’t last just as long as the original (18 year old dryer). No more multiple drying cycles to get our clothes dryer.
Makayla –
Worked exactly as expected. Had to do a bit of research to make sure it was the right one, and it was. Changed it myself and have had 0 issues with my drier. If you’re handy you can definitely replace this yourself. It’s pretty straight forward.
P. A. –
Looks pretty much like the OEM for half the price.
